Multiunit Abutments

Does DESS make multiunit abutments?

Yes, DESS makes straight and angled multiunit abutments for the following implant connections:

  • Nobel® (Replace, Active/Conical Connection), Branemark®
  • Zimmer®/BioHorzions®/MIS®/Legacy® Internal Hex
  • Straumann Bone Level®
  • 3i Osseotite® External Hex

All of our straight and angled multiunit abutments can be found here.

In addition we make Astra® Uniabutments for Aqua/Lilac and a converter abutment (similar to the 1.5 abutment) for Straumann® Tissue Level/ Synocta.

What compatible multiunits does DESS make for Noble® Replace?

All of our Nobel® Replace compatible multiunit abutments include a final titanium abutment screw with a diamond coating (DLC) and multiunit carrier for easier handling.

Multiunit abutment with DLC screw NP 3.5 RP 4.5 WP 5.0
1mm 40.004/1 40.005/1 40.006/1
2mm 40.004/2 40.005/2 40.006/2
3mm 40.004/3 40.005/3 40.006/3
4mm 40.005/4
5mm 40.005/5
Angled Multiunit abutment with DLC screw NP 3.5 RP 4.5
17° 2mm 41.704/2 41.705/2
3mm 41.704/3 41.704/3
4mm 41.705/4
30° 4mm 43.005/4
5mm 43.005/5

What compatible multiunits does DESS make for Nobel® Active?

All of our Nobel Active compatible angled multiunit abutments include a final titanium abutment screw with a diamond coating (DLC) and a carrier for easier handling. The straight have a final titanium abutment screw and multiunit carrier for easier handling.

Multiunit abutment NP 3.5 RP 4.5 - 5.0
1.5mm 40.007/1 40.008/1
2.5mm 40.007/2 40.008/2
3.5mm 40.007/3 40.008/3
4.5mm 40.008/4
Angled Multiunit abutment with DLC screw NP 3.5 RP 4.5 - 5.0
17° 2.5mm 41.707/2 41.708/2
3.5mm 41.707/3 41.708/3
30° 3.5mm 43.007/3 43.008/3
4.5mm 43.007/4 43.008/4

What compatible multiunits does DESS make for Straumann® Bone Level?

All of our Straumann Bone level compatible multiunit abutments include a final titanium abutment screw and a multiunit carrier for easier handling.

Multiunit abutment NC RC
1.5mm 40.043/1 40.044/1
2.5mm 40.043/2 40.044/2
3.5mm 40.043/3 40.044/3
4.5mm 40.044/4
Angled Multiunit abutment with DLC screw NC RC
17° 2.5mm 41.743/2 41.744/2
3.5mm 41.743/3 41.744/3
30° 3.5mm 43.043/3 43.044/3
4.5mm 43.043/4 43.044/4

What compatible multiunits does DESS make for Zimmer®/Biohorizons®/Internal Hex?

All of our Zimmer compatible multiunit abutments include a final titanium abutment screw and a multiunit carrier for easier handling.

Multiunit abutment 3.5 4.5
1mm 40.019/1 40.020/1
2mm 40.019/2 40.020/2
3mm 40.019/3 40.020/3
4mm 40.019/4
5mm 40.019/5
Angled Multiunit abutment with DLC screw 3.5
17° 2.5mm 41.719/2
3.5mm 41.719/3
30° 3.5mm 43.019/3
4.5mm 43.019/4

What compatible multiunits does DESS make for Branemark®?

All of our Branemark® External Hex compatible multiunit abutments include a final titanium abutment screw with a diamond coating (DLC) and a multiunit carrier for easier handling.

Multiunit abutment with DLC screw NP 3.5 RP 4.1 WP 5.1
1mm 40.001/1 40.002/1 40.003/1
2mm 40.001/2 40.002/2 40.003/2
3mm 40.001/3 40.002/3 40.003/3
4mm 40.002/4
5mm 40.002/5
Angled Multiunit abutment with DLC screw 3.5 4.1
17° 2mm 41.701/2 41.702/2
3mm 41.701/3 41.702/3
4mm 41.702/4
30° 4mm 43.002/4
5mm 43.002/5

What compatible multiunits does DESS make for 3i Osseotite® External Hex?

All of our 3i Osseotite External Hex compatible multiunit abutments include a final titanium abutment screw and a multiunit carrier for easier handling. Our angled multiunit abutments include a final titanium abutment screw with a diamond coating (DLC) and a multiunit carrier for easier handling.

Multiunit abutment 3.4 4.1
1mm 40.009/1 40.017/1
2mm 40.009/2 40.017/2
3mm 40.009/3 40.017/3
4mm 40.017/4
5mm 40.017/5
Angled Multiunit abutment with DLC screw 3.4 4.1
17° 2mm 41.701/2 41.702/2
3mm 41.701/3 41.702/3
4mm 41.702/4
30° 4mm 43.002/4
5mm 43.002/5

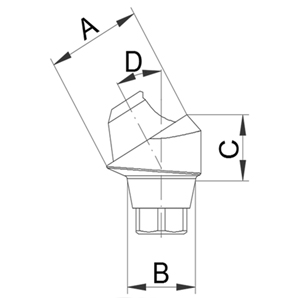

What are the dimensions of the DESS angled multiunit abutments?

All dimensions in MM

Nobel® Replace Compatible

SKU Platform A B C D
41.704/2 NP 4.8 2.95 2.00 17°
41.704/3 NP 4.8 2.95 3.00 17°
41.705/2 RP 4.8 3.35 2.00 17°
41.705/3 RP 4.8 3.35 3.00 17°
41.705/4 RP 4.8 2.95 4.00 17°
43.005/4 RP 4.8 2.95 4.00 30°
43.005/5 RP 4.8 2.95 5.00 30°

Nobel® Active Compatible

SKU Platform A B C D
41.707/2 NP 4.8 2.95 2.50 17°
41.707/3 NP 4.8 2.95 3.50 17°
43.708/2 RP 4.8 3.35 2.50 17°
43.708/3 RP 4.8 3.35 3.50 17°
43.007/3 NP 4.8 2.95 3.50 30°
43.007/4 NP 4.8 2.95 4.50 30°
43.008/3 RP 4.8 3.35 3.50 30°
43.008/4 RP 4.8 3.35 4.50 30°

Straumann® Bone Level Compatible

SKU Platform A B C D
41.743/2 NC 4.8 2.95 2.5 17°
41.743/3 NC 4.8 2.95 3.5 17°
41.744/2 RC 4.8 3.35 2.5 17°
41.744/3 RC 4.8 3.35 3.5 17°
43.043/3 NC 4.8 2.95 3.5 30°
43.043/4 NC 4.8 2.95 4.5 30°
43.044/3 RC 4.8 3.35 3.5 30°
43.044/4 RC 4.8 3.35 4.5 30°

Zimmer®, BioHorizons®, Internal Hex Compatible

SKU Platform A B C D
41.719/2 3.5 4.8 3.5 2.5 17°
41.719/3 3.5 4.8 3.5 3.5 17°
43.019/3 4.5 4.8 3.5 3.5 30°
43.019/4 4.5 4.8 3.5 4.5 30°

Branemark® & 3i Osseotite® External Hex Compatible

SKU Platform A B C D
41.701/2 NP 4.8 3.5 2.00 17°
41.701/3 NP 4.8 3.5 3.00 17°
41.702/2 RP 4.8 4.1 2.00 17°
41.702/3 RP 4.8 4.1 3.00 17°
41.702/4 RP 4.8 4.1 4.00 17°
43.002/4 RP 4.8 4.1 4.00 30°
43.002/5 RP 4.8 4.1 5.00 30°

What multiunit components does DESS manufacture?

Healing Caps, Impression Transfers, Analogs, Ti Bases (two sizes), All Plastic Abutments, Titanium Temporary Abutments, Chrome Cobalt Bases (for casting bars), Angulated Screws (for lingual screw access on top of multiunit), Dental lab scan bodies, and Intraoral Scan bodies.

All of our abutments include the small final screw which has the Star/Unigrip design that screws into the top of the multiunit abutment (part 19.106). A carbon coated one is also available (part 19.206). Small multiunit screws for Zimmer/BioHorizons/Internal Hex with the .050 hex (part 19.110) 3i Certain with the .048 hex (part 19.106), and Straumann Bone Level (part 19.041 with 45 degree head base angle and 19.105 flat seat) are also available.

It is imperative to confirm with the supplier of the multiunit that you can utilize Nobel components on top of their multiunit. Several companies have moved away from the Nobel top design including Zimmer, Implant Direct, and MIS creating their own proprietary design.

What multiunits are DESS components compatible with?

DESS multiunit components are compatible to fit onto the following multiunit abutments from the original manufacturer:

  • Nobel® Replace, Nobel® Active, Branemark®
  • Straumann® Bone Level and Straumann® Tissue Level (their 1.5 abutment)
  • BioHorizons® Internal Hex
  • 3i Certain® and 3i Osseotite® External Hex
  • Astra® UniAbutment

Please Note - Zimmer® and Implant Direct® and MIS® have moved away from the Nobel® tops of their multiunits to a proprietary connection. If you or your referrals are looking for a better solution then consider our Internal Hex multiunit abutments. It will save you a lot of money, all the parts are compatible with the industry standard "Nobel" top and they are compatible with Zimmer®, Implant Direct®, and MIS® internal hex implants.

×
×
