The AngleBase® ti base comes with an angulated screw, SKU 19.306 that takes the DESS angulated screw channel driver.
This ti base has a 0.3mm collar height and has a 4.5mm chimney height...
This is an Angulated Screw Channel (ASC) final screw that takes the DESS Angulated Screw Channel driver. Torque is 15Ncm.It can be used to move the screw access hole up to 25 degrees in any...
This latch style driver is made of stainless steel and is compatible with all of the angulated screw channel and AngleBase® screws from DESS. It provides you up to 25 degrees angulation. This driver...
This latch style driver is made of stainless steel and is compatible with all of the angulated screw channel and AngleBase® screws from DESS. It provides you up to 25 degrees angulation. This...
This latch style driver is made of stainless steel and is compatible with all of the angulated screw channel ANGLEBase® and ELLIPti base® screws from DESS. It provides you up to 25 degrees...
This latch style driver is made of stainless steel and is compatible with all of the angulated screw channel and AngleBase® screws from DESS. It provides you up to 25 degrees angulation. This...
This five pack of castable sleeves at 0° will fit all of our AngleBase® ti bases. The internal connection of this castable sleeve is non engaging. The AngleBase® ti base is not designed to be...
This five pack of castable sleeves at 10° will fit all of our AngleBase® ti bases. The internal connection of this castable sleeve is non engaging. The AngleBase® ti base is not designed to be...
This five pack of castable sleeves at 20° will fit all of our AngleBase® ti bases. The internal connection of this castable sleeve is non engaging. The AngleBase® ti base is not designed to be...

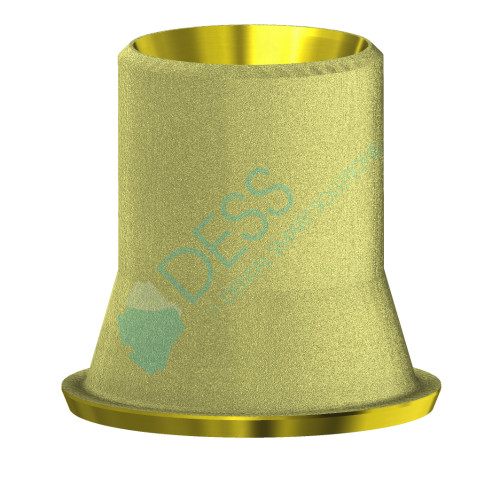

The AngleBase® ti base comes with an angulated screw, SKU 19.306 that takes the DESS angulated screw channel driver.
This ti base has a 0.3mm collar height and has a 4.5mm chimney height.
The torque is 15 ncm.
This ti base is used for changing the screw access hole up to 25 degrees in any direction. This part is gold anodized to improve aesthetics.
It is compatible with the following top (Ø 4.8 mm) of Multiunit Abutments: 3i Biomet Certain® Low Profile & 3i Osseotite® External Hex Astra EV® Multibase Blue Sky Bio® (BSB) BioHorizons® Internal Hex, BioHorizons® Tapered Pro Conical, & BioHorizons® Conelog Hahn™ Hiossen® / Osstem Keystone® Genesis / Prima Megagen Anyridge® N Type Neodent® GM Mini Conical Abutment Nobel Active®, Nobel Replace®, & Nobel Brånemark® (NP and RP) Noris Medical® DESS® Multiunits
Wax up sleeves are sold separately; 0° - 33.100-P5, 10° - 33.101-P5, & 20° - 33.102-P5
